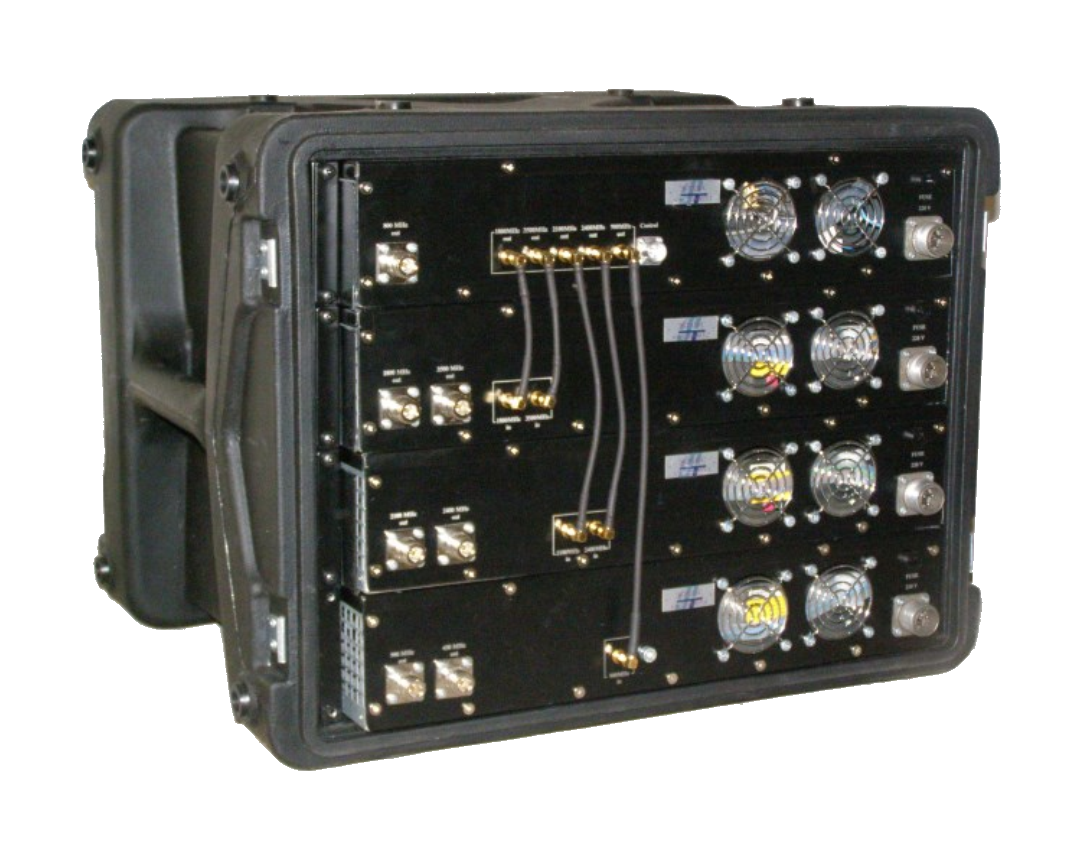

Ekran-R is a multiband portable jammer designed for use by police and national security personnel. The device can be deployed anywhere with access to mains power and mounted on a vehicle. The system emits RF on the same frequency as the target transmitting source with a total aggregated power of 550 W, preventing the target cell phones' or other RF devices' typical reception path.

The device automatically operates across relevant frequency bands when cellular networks are being jammed. Additionally, using real-time measurements of the up-link RF signals from nearby cellular base stations, we have implemented channel-selective jamming. This considerably enhances system performance by enabling the suppression of up to 16 of the strongest carrier signals coming from various cellular networks.

• Receiver module (panoramic receivers for RF environment analysis)
• Information display and control module
• Multichannel suppression signals forming module
• Power amplifiers module
• UHF antennas controlled positioners module
• Antenna system
• Power supply subsystem

Tactical UHV 30-88 MHz: 2ch;10 W; in-band interference supported including FH
FM broadcasting 88-109 MHz: 5/10 ch; 50 W; in-band interference not supported
PMR, VHF band 110-280 MHz: 4/5 ch -20 W; in-band interference supported including FH
PMR, UHF band 280-600 MHz / 824-880 MHz: 2x2 ch;10 W; in-band interference supported incl. FH
CDMA-450/800: 1 ch; 20 W; in-band interference supported (1,5-25 MHz)
CDMA-1900 (1890-1990 MHz): 1 ch; 25 W in-band interference supported (1,5-25 MHz)
GSM-900/GSM-1800 (880-960 MHz/1710-1880 MHz): 2x16/4 ch; 20 W; in-band interference supported
UMTS 2100 1920-2170 MHz: 8/4 ch; 20 W; in-band interference not supported
UMTS 850-900, 860-960 MHz: 4/4 ch; 20 W; in-band interference not supported
Thuraya, Iridium, Inmarsat 1500-1700 MHz: 2 ch; in-band interference supported
VSAT (Ku-band) 10.75-12.2 GHz: 2 ch; in-band interference not supported
VSAT (C-band) 3.7-4.2 GHz: 2 ch; in-band interference supported
WiFi 2.4/5.2/5.7 GHz: 3 ch; in-band interference supported
WiMax/LTE 800/2300/2500-2700 MHz: 3 ch; in-band interference supported
Microwave links 7 and 18 GHz: 2 ch; in-band interference not supported
