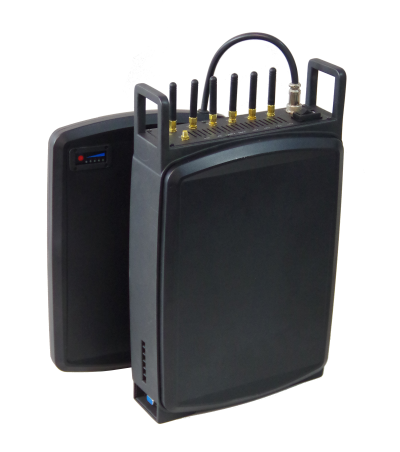

PRX-MS NETWORK-IN-A-BOX
2G, 3G and 4G portable wireless Network-in-a-box system • Models: BP-04, BP-06 and BP-08
To ensure optimal performance, PRX-MS Mini Autonomous Mobile Communication System is equipped with RF environment scanning capabilities, which allow it to detect available frequencies and network conditions in the surrounding area. Based on this information, the system can automatically adjust its parameters, such as power output and modulation schemes, to ensure that it is using the best available frequency and minimizing interference with other networks. This feature helps ensure that the portable stand-alone network is operating at peak performance, providing reliable connectivity to users even in challenging environments.

The system is designed to be compact and easy to transport, making it ideal for use in areas where traditional network infrastructure is unavailable. It can be powered by AC or DC power sources, making it versatile and suitable for use in a wide range of settings. It is a a self-contained system that can provide wireless connectivity in remote or disaster-stricken areas.

In terms of network support, the system supports GSM, UMTS, and LTE, providing a wide range of connectivity options. This means that users can connect to the network using their existing devices, including smartphones, tablets, and laptops.

One of the key PRX-MS features is its ability to support separate SIM cards for network users. This means that each user can have their own individual SIM card, providing greater flexibility and control over network access. This feature also allows for better tracking and management of network usage, which can be important for organizations that need to monitor network activity.

PRX-MS is a powerful and versatile solution that can be used in a wide range of settings. Whether you're working in a remote location, responding to a disaster, or simply need a reliable network in an area without traditional infrastructure, this system can provide the connectivity you need.
SPECIFICATIONS (6 CH. MODIFICATION)
Number of channels: 6 programmable channels
Supported standards: GSM, UMTS, LTE
Operating frequency range: 700/800/850/900/1800/1900/2100/2600 MHz (other bands in the 700-2700 MHz range can be supported)
Transmitters and peak power: 6 * 2.5-5 W
Receive path sensitivity: up to -105 dBm
Transmit antennas gain: 4-7 dBi for directional antenna; 1-2 dBi for omni antenna
Receive antennas gain: 1-2 dBi
Power supply: Li-Ion 1200 Wh battery; Battery Charger from moto generator 12V up to 7А (option); Battery Charger from mains power supply 220V 50Hz
Management interface: Wi-Fi 5GHz or LAN
Control device: Tablet or phone; Both Web and Remote Desktop modes are supported
Operation time on battery: up to 6 hours
Weight, with battery: 7.80 kg
To increase the range of the system and improve its capacity, it is possible to combine several units using external power amplifiers (for vehicle use version). The antenna system in the car can be installed on the plastic trunk, the plastic roof of a minibus (for example, VW T6), or other options.
