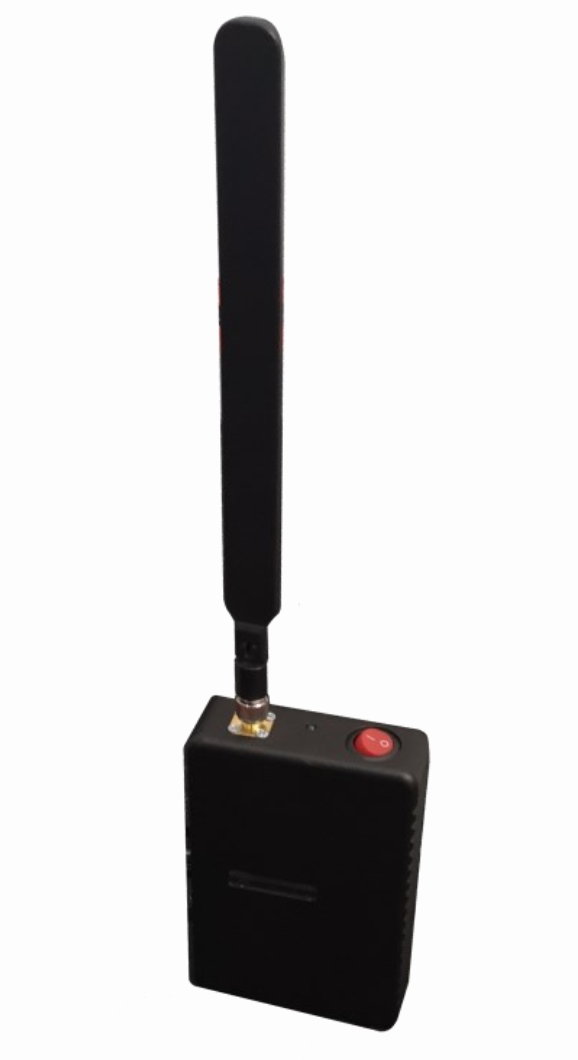

MSC-234 is a compact and easy to use device designed to perform scanning, storage and analysis of information on all wireless networks operated in 2G, 3G and 4G standards. The unit can work along with virtually any Android based cell phone using Bluetooth connectivity.

The scanner is easy to use. Switch on the scanning module and wait for about 60 seconds for all the modules to load and get ready for use. Make sure that both LEDs are constantly on and not blinking. Next, pair the scanning module with Bluetooth using network name and password in the standard phone settings menu. Finally, launch the BT_34_Scanner app on your Android tablet or phone.

• Scanning parameters across all 2/3/4G wireless networks active in the area
• Fast scan (less than 3 minutes for all wireless carriers/frequency bands)
• Start scan with a single button in automatic mode (Auto mode)
• Storing collected results with managing cellphone or computer for further analysis
• Recording of user location (GPS/Internet) and timestamps tailored to scanning results
• Extended operation time on battery
• Hot swap of battery
• Compliance with all Android based devices
• Use of various antennas types depending on application scenario
• Base stations search mode
• Base station sector search mode
• Sound alerts for detected base station sector
• Frequency bands: LTE FDD: 1, 2, 3, 5, 7, 8, 20, 28; UMTS: 1, 2, 5, 8; GSM: 850, 900, 1800, 1900 MHz
• Weight /Dimensions (without battery and antenna): 265 g./121*72*25 mm
• Battery/Consumed current: Protected, 18650 type 2 500+ mAh / 0,2 A

• Receiver (scanner) module
• Scanning antenna (2 pcs)
• 18650 type protected battery (to be purchased locally due to shipping limitations)
• Charging device
• Android based mobile phone (responsibility of end user)
