HANDHELD ARFCN-BASED RECEIVER
Mod. MPT-900 and MPT-800
OPERATION PRINCIPLE
The MPT-900 receiver is designed to automatically tune itself to a predetermined cellular phone transmission channel, and then convert the incoming signal strength into a numerical value that corresponds to the distance from the transmitter. This allows for accurate detection of the location of the transmitting object.

User can easily manage MPT-900 receiver for GSM, UMTS, and LTE networks with your Android smartphone, thanks to its Bluetooth interface. This user-friendly device offers two types of feedback options: you can choose to receive audio feedback through a headset or through the built-in speaker of your phone. This allows for easy and convenient monitoring of the receiver's performance.

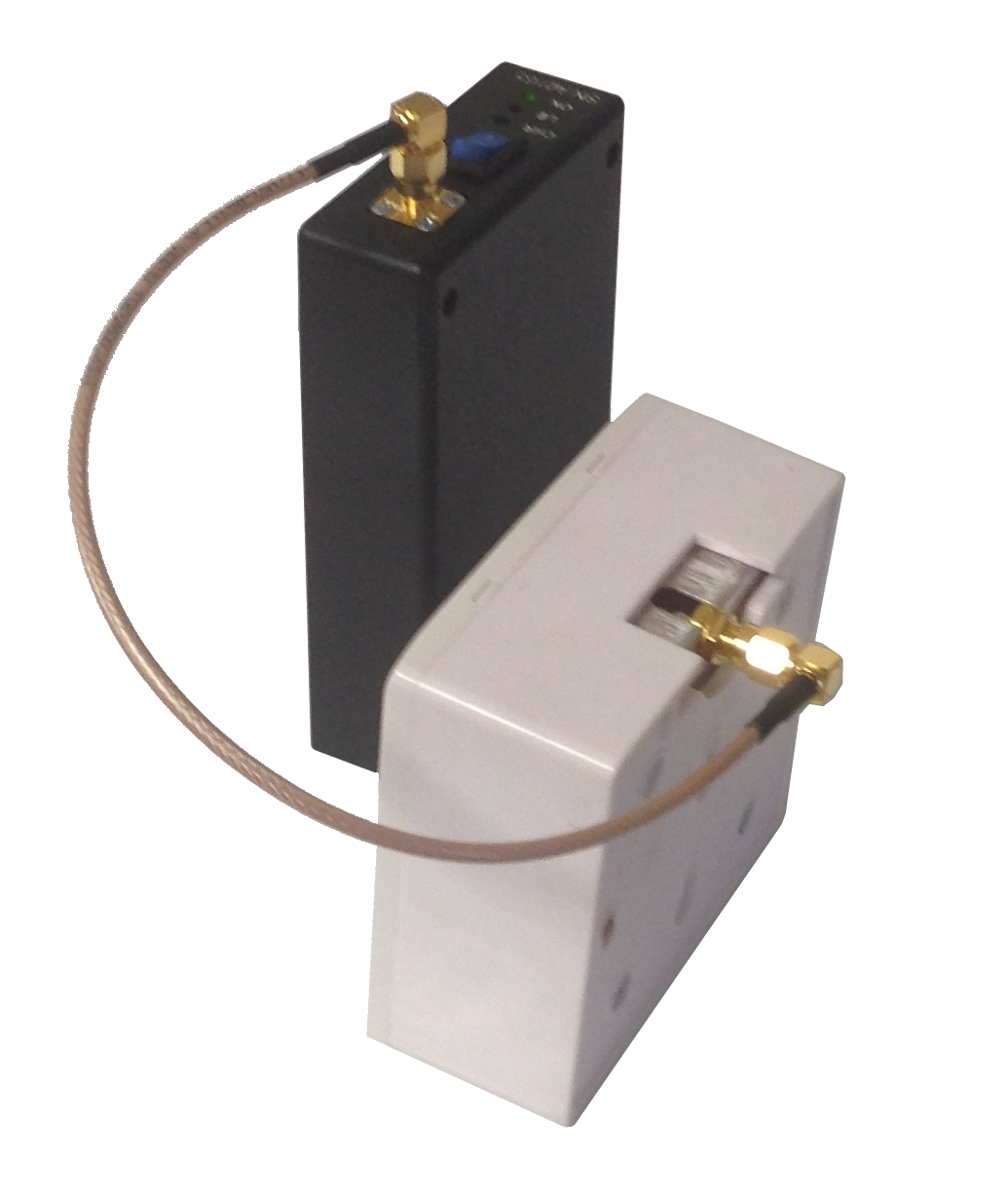

COMPONENTS
• Receiver unit with built-in Bluetooth modem
• Directional or Omni antenna
• Managing Android smartphone with charger (optional)
• RF cable and connector
• 3,7 V Li-Ion Type 18650 protected battery (optional)
• Battery charger (optional)
• Android MPT-900 (mpt-800) software suite (.apk file)
SPECIFICATIONS
Operating frequencies: 832…862 MHz, 824…848MHz, 880…915MHz, 1710…1785 MHz, 1920…1980 MHz, 2500…2570 MHz (any other bands on request)
Receiver sensitivity: -105 dBm (832…862, 824…848, 880…915 MHz) / -100 dBm (1710…1785 MHz) / - 95 dBm (1920…1980, 2500…2570 MHz)
Operation time from battery: not less than 10 hours (with 2400 mAh 18650 type)
Number of supported channels (MPT-900): 8
Number of supported channels (MPT-800): 6
Dimensions, receiver: 115*72*25 mm
Weight with battery, receiver: 295 g
Operating temperature: -20...+50 C
Humidity: max 85% non-condensing
CompatibilitY: compatible with any available GSM, UMTS or LTE Network-in-a-Box system
Number of supported ARFCN channels: one at a time
Storage: inside a small hand carry bag
Receiver manipulation: through Android smartphone with. apk file
Received feedback reading: telephone loudspeaker, Bluetooth or regular headset
Output option A: voice counts with 1 second interval over a scale from 1 to 30
Output option B: tone signal with frequency relevant to received signal strength
Output option C: repeated clicks, interval between clicks depends on the received signal strength
Battery type: Li-Ion 3,7V size 18650 (protected type, 2400mAh or higher capacity recommended)
CHANNEL SETUP

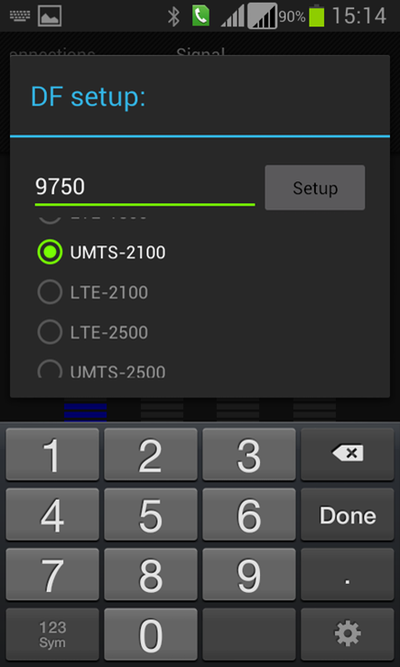

To input a channel number, tap the green entry line and use the pop-up keyboard to enter the number. The application will automatically detect the frequency band and mobile standard (GSM/UMTS/LTE) based on the channel number and highlight it for you. Once you've selected the channel number, press "Setup."
RECEIVER READINGS

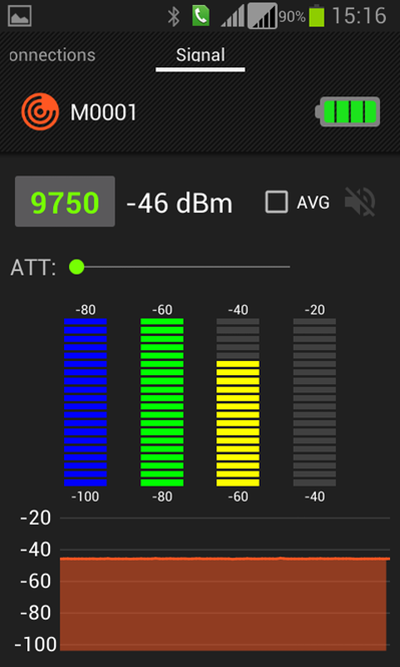

Signal level in dBm is displayed digitally and in a form of vertical bars. The left bar (colored blue) corresponds to signal levels between -100 and- 80 dBm, green bar - between -80 and -60 dBm, yellow bar - between -60 and -40dBm and red bar on the right, - between -40 and -20 dBm. History graph (screen bottom) indicates signal level variation on time axis
OUTPUT OPTIONS

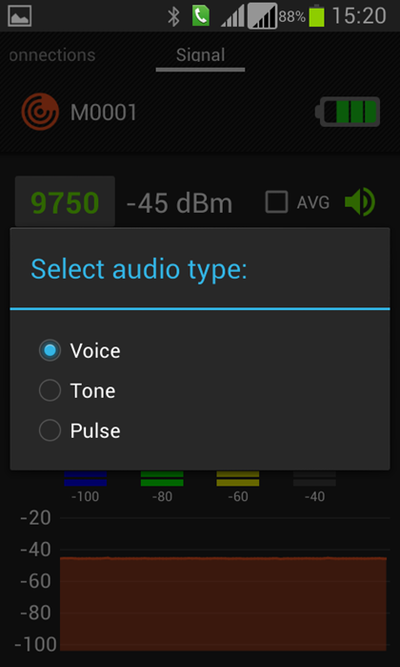

Audio Types menu allows user to choose one of the following options: voice, tone, or pulse. If the signal level falls below the sensitivity threshold ("No Signal"), the receiver will generate tone pulses at 1-second intervals, regardless of the selected audio output option. This confirms the receiver is on and the BT connection is active
Some frequency bands and mobile standards have overlapping channels numbering (for example, channels 975…1023 are used in both GSM-900 and UMTS-1800). In this case application highlights both options, one of them must be selected.
